Celeron N5105 Processor With Four LAN and 1HDMI 1DP Mini PC

Celeron N5105 4LAN 1HDMI 1DP Mini PC Description:

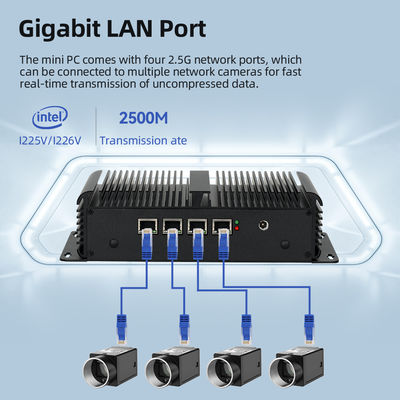

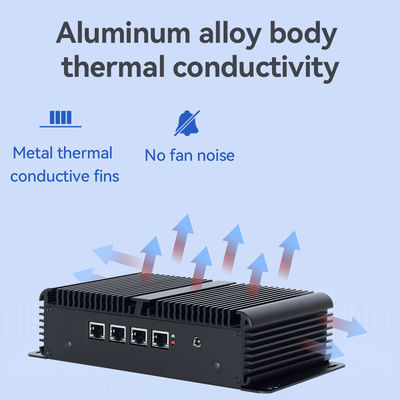

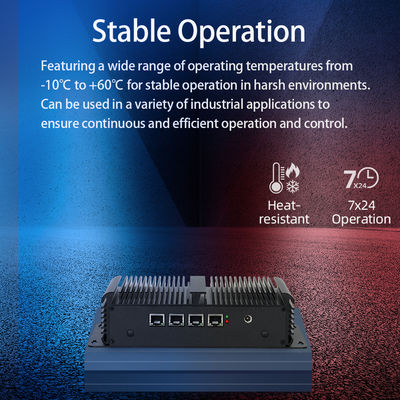

Powered by the Intel 11th Gen N5105 processor (4 cores, 4 threads; 2.0GHz base frequency, 2.9GHz turbo boost, per Intel's official data), this mini PC features four Intel I225V/I226 2.5G Ethernet ports (supporting network stacking, Wake-on-LAN), 2×USB 3.2.0 ports, 2×USB 2.0 ports, 1×HDMI 2.0 output, 1×DP 1.4 output, and 1×POWER BUTTON. Storage options include 1×M.2 2280 NVME slot and 1×SATA3.0 port. Expansion capabilities consist of one MiniPCIe slot (supporting 3G/4G/WiFi) and one USB 2.0 header. The device runs Windows 10/11, LINUX, or can be configured as a software router. Constructed with an aluminum alloy chassis, it uses a DC 12V/5A power supply. It operates within an operating temperature range of -10°C to +60°C, a storage temperature range of -30°C to +70°C, and a storage humidity range of 5%-95% RH (no condensation). Its physical dimensions are 120×120×MM, and it weighs 1.5KG.

Celeron N5105 4LAN 1HDMI 1DP Mini PC Specification:

Celeron N5105 4LAN 1HDMI 1DP Mini PC Precessor:

Powered by Intel 11th Gen Processor N5105, this industrial mini PC delivers exceptional speed and energy efficiency, ideal for modern demands. It runs at a 2.0GHz base frequency, can turbo-boost to 2.9GHz, and has 4 cores with 4 threads. With versatile application possibilities such as machine vision, face recognition, intelligent robotics, and automation, it delivers the speed and energy efficiency needed for diverse smart applications.

Celeron N5105 4LAN 1HDMI 1DP Mini PC Application:

The mini PC featuring Intel Celeron N5105 is highly versatile, ideal for Industrial Premises, Entertainment Venues, Commercial Institutions, Public Places, Financial Institutions, Monitoring Systems, Express Pick-up Lockers, and Digital Signage. It drives efficient operations across these diverse sectors with its robust performance and connectivity.

Celeron N5105 4LAN 1HDMI 1DP Mini PC Interfaces:

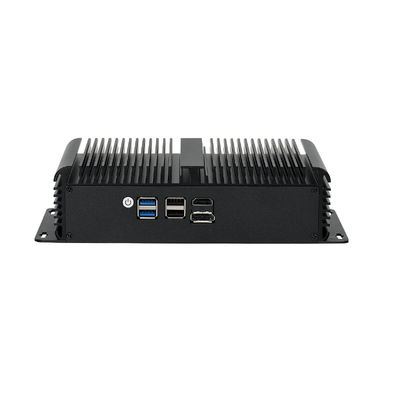

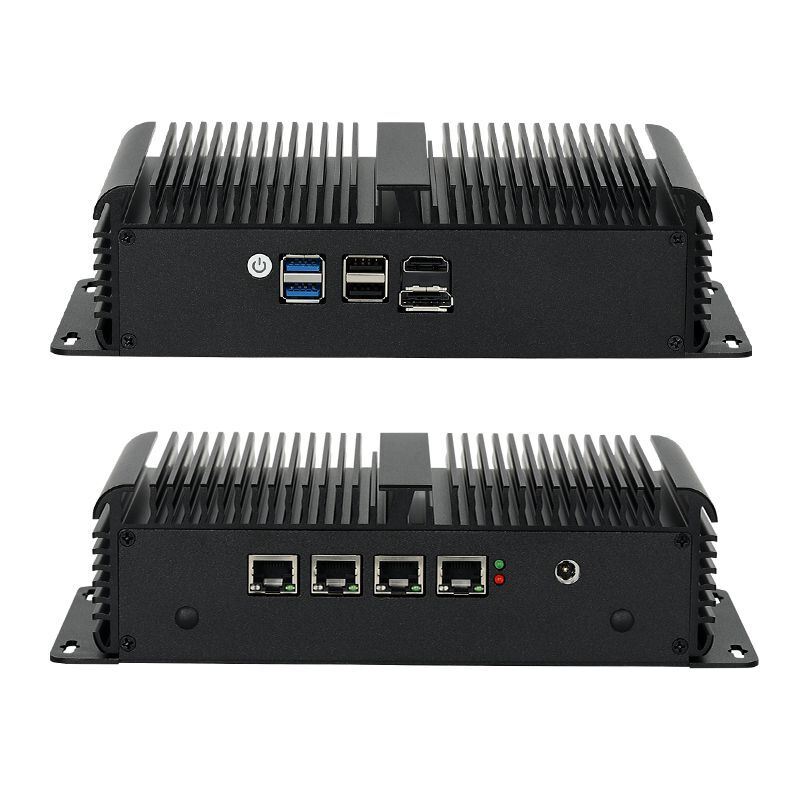

Equipped with 1*Power Button, 1*USB 3.0 Port, 1*USB 2.0 Port, 1*DP Port, 1*HD Interface, 4*2.5G Ethernet Port, and 1*Power Interface. A well-rounded interface set to handle diverse industrial connectivity needs.
