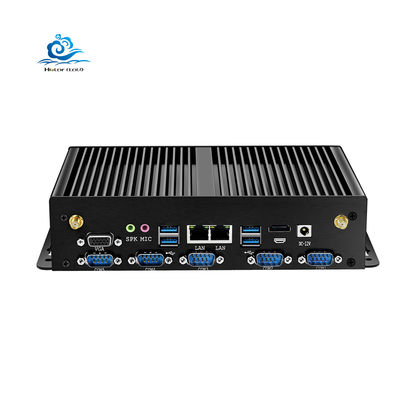

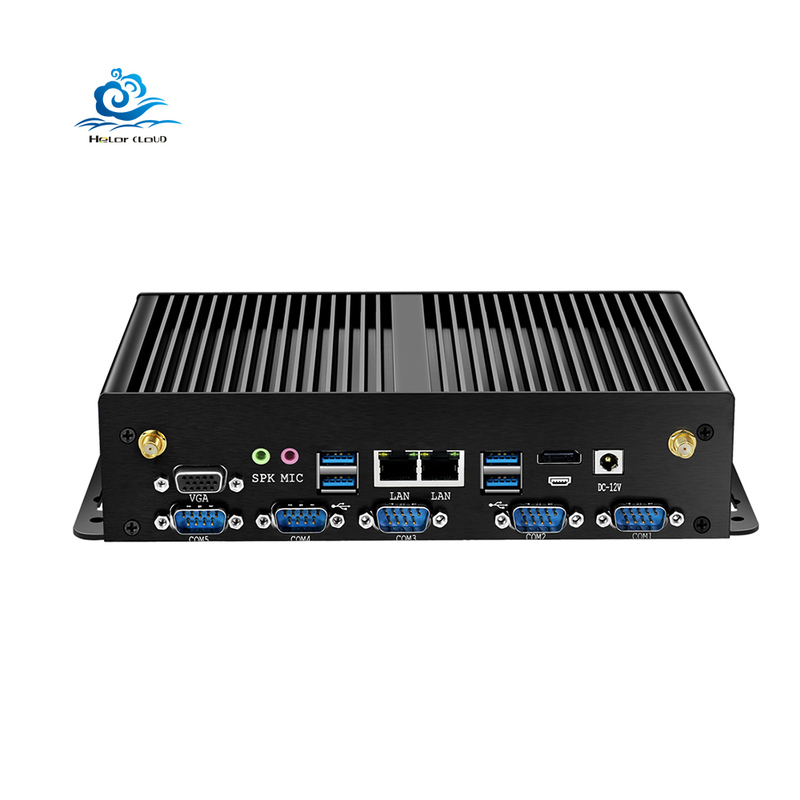

HLY J1900 Industrial PC with 8 USB Ports 3G/4G LTE and Compact Size 235x137x55mm Fanless Embedded Computer

Nazwa marki:	HLY
MOQ:	2
Cena £:	$173.70

Szczegółowe informacje

Opis produktu

Szczegółowe informacje

Miejsce pochodzenia:

Guangdong, Chiny

Model procesora:

J1900,2955U,3805U,i3 4010U,i5 4200U,i7 4500U,i7 5500U

Typ pamięci RAM:

DDR3L 1333/1600 MHz

Slot RAM:

1x SODIMM

Typ przechowywania:

1x mSATA + 1x 2,5-calowy dysk SSD/HDD

Porty USB:

8x (4x USB3.0, 4x USB2.0)

Porty Ethernet:

2x RJ45 Gigabit (Intel i211AT)

Porty szeregowe:

6x (4x RS232, 2x RS485/RS232)

Wyświetl porty:

1x VGA, 1x HDMI

Gniazda ekspansji:

1x mPCIe (WiFi/BT), 1x mPCIe (3G/4G LTE)

Temperatura robocza:

-20 ℃ do +60 ℃

Wejście mocy:

AC100-240V

Moc wyjściowa:

DC12V-5A

Wymiary:

235 x 137 x 55 mm

Waga netto:

1,2 kg

System chłodzenia:

Bezwentylatorowy, pasywny

Podkreślić:

8 USB Ports Industrial PC

3G/4G LTE Industrial Computer

Compact Size 235x137x55mm Embedded Computer

Opis produktu

HLY J1900 Dual Gigabit Ethernet WiFi RS232 RS485 8USB 3G/4G LTE Linux Barebone Fanless Industrial Computer Mini Desktop PC

Notice:

1. The price shown on this page is for the H26A Industrial PC J1900 with NO RAM and NO SSD. Contact us for more information and pricing.

2. We have two versions of this model (basic functionality is the same, but port positions differ). Units are shipped randomly from stock - see images below for details.

Main Features:

Supports Win10, Win8/8.1, Win7, Linux & Ubuntu, VxWorks, WES7, WES8
1x SODIMM DDR3L 1.35V RAM slot and dual storage (1x mSATA + 1x 2.5" SATA SSD/HDD)
8x USB ports (4x USB 3.0, 4x USB 2.0)

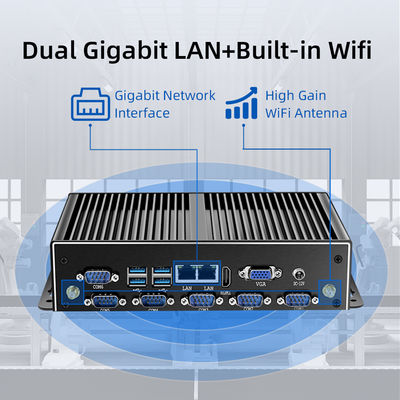

Dual NIC with 2x RJ45 10/100/1000Mb/s Intel i211AT Gigabit Ethernet
6x RS232 Serial Ports (COM5 & COM6 adjustable to RS485)
HD & VGA independent video output

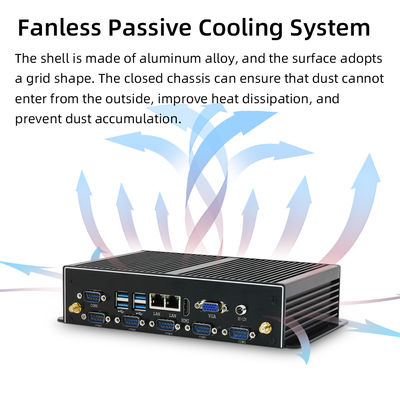

Aluminum chassis with fanless passive cooling
Supports watchdog, virtualization, wake on LAN, automatic power-on after power input
Expandable with GPIO/WiFi/3G/4G LTE module (includes micro SIM card slot)

Technical Specifications:

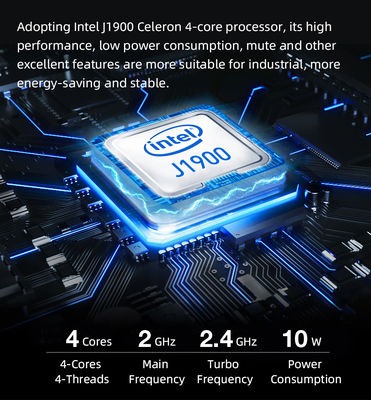

Processors	Intel Celeron 2955U, 2M Cache, 1.40 GHz Intel Celeron J1900, 2M Cache, up to 2.42 GHz Intel Core i5-4200U, 3M Cache, up to 2.60 GHz Intel Core i7-4500U, 4M Cache, up to 3.00 GHz Intel Core i7-5500U, 4M Cache, up to 3.00 GHz
Memory	1x SODIMM DDR3L 1333/1600MHz slot Intel Celeron 2955U/J1900 & Core i5-4200U/i7-4500U: max 8GB Intel Core i7-5500U: max 16GB
Storage	1x mSATA SSD (default) + 1x 2.5" SATA HDD/SSD
Graphics	Intel HD Graphics (CPU dependent)
Network Interfaces	2x GbE RJ45 Intel i211
Expansion	1x Mini PCI-E for WiFi/BT module (half height) 1x Mini PCI-E for 3G/4G module (full height, with SIM card slot)
OS Support	Win7/8/10, Linux, Ubuntu, CENTOS, Vxworks, WES7, WES8
USB Ports	4x USB 3.0, 4x USB 2.0
Display Ports	1x VGA, 1x HDMI
COM Ports	COM1-COM4: RS232; COM5-COM6: RS485 or RS232
Audio Ports	1x SPK, 1x MIC (3.5mm jack), ALC662
Construction	Fanless passive cooling
Case	Aluminum
Dimensions	235×137×55mm
Net Weight	1.2Kg

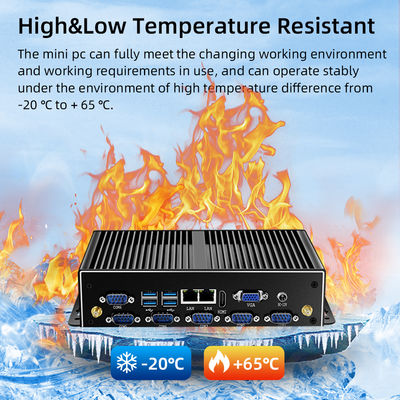

Operating Temperature	-20℃ to +60℃
Relative Humidity	5%~90% @30℃ (Non-condensing)
Power Adapter	Input: AC100-240V; Output: DC12V-5A
Package Contents	1x Mini PC X26A 1x AC Adapter 1x Power cord (EU/AU/US/UK type based on destination) 1x SATA cable 1x User manual

Version 1:

Version 2:

Company Profile

Shenzhen Helor Cloud Computer Co., Ltd (HLY), located in Shenzhen, Guangdong, has specialized in mini computers since 2013 with our own professional motherboard manufacturer. We've developed over 50 proprietary products for applications in AI, office, education, entertainment, advertising, transportation, military, and industrial fields.

Our mini PCs are sold in over 60 countries with annual sales exceeding one million units. HLY carries components from 20+ manufacturers, allowing us to offer cutting-edge devices with the latest technology at competitive prices.

With 100+ employees including experienced technical, sales, and production teams, we maintain strict quality control throughout production. Our engineers excel at analyzing requirements and developing customized solutions, making us ideal for ODM/OEM projects. From design to after-sales service, HLY guarantees the highest quality and service standards.

Packaging & Shipping

Power adapter: Multiple specifications available, selected by default based on destination (EU, UK, US, AU, Brazil, etc.). Contact us for special requirements.

Payment: L/C; DA; DP; T/T; Western Union; Alibaba; negotiable

Shipping Methods: DHL, FedEx, UPS, Aramex, post, Alibaba, or negotiable

FAQ

1. What is the warranty policy?

First year: free repair service. Second and third years: free repair labor with parts charged at cost.

2. Can I print my logo on the mini PC?

Yes, provide your logo file and we'll confirm the design before production. OEM/ODM services available.

3. What is the minimum order quantity?

Single samples available for testing.

4. How long for order processing?

Approximately 3 days for inspection/assembly. 10 units ship in ~3 days; 50 units in ~8 days. Contact us for specific timelines.

5. Are your mini PCs in stock?

Most models are in stock. Please confirm inventory before ordering.
