Industrial Mini PC with Intel Core i5-5200U Processor DDR3L RAM and mSATA SSD Barebone System Computer

Name: Industrial Mini PC with Intel Core i5-5200U Processor DDR3L RAM and mSATA SSD Barebone System Computer
Brand: Shenzhen Helor Cloud Computer Co., Ltd.
SKU: H31G
Price: 169.00 USD
Availability: InStock

Nazwa marki:	HLY
Numer modelu:	H31G
MOQ:	2

Szczegółowe informacje

Opis produktu

Szczegółowe informacje

Miejsce pochodzenia:

Guangdong, Chiny

rdzeń procesora:

Podwójny rdzeń

Model procesora:

Intel Core i5-5200U

Prędkość CPU:

2,70 GHz

Typ pamięci RAM:

DDR3L 1333/1600 MHz

Slot RAM:

1x DDR3L

Pamięć wideo:

2 GB

Karta graficzna:

Karta graficzna Intel HD 5500

Wsparcie SSD:

1x mSATA + 1x 2,5-calowy dysk SSD

Wsparcie Wi -Fi:

mPCIe (połowa rozmiaru) 300M

Typ LAN:

Gigabitowa sieć LAN

Porty USB:

6x USB3.0

Wyjście wideo:

1x VGA, 1x HDMI

Wejście mocy:

12 V, 5 A

Temperatura robocza:

-20 ° C do 80 ° C.

Wymiary:

180 x 128 x 55 mm

Podkreślić:

Intel Core i5-5200U Processor Industrial Mini PC

DDR3L RAM Barebone System Computer

mSATA SSD Industrial Mini PC

Opis produktu

Compact Firewall Motherboard for pfSense - Barebone System

The H31G Mini PC is a powerful industrial-grade computer featuring an Intel Core i5-5200U processor with robust performance for networking applications. Its compact, fanless design makes it ideal for firewall and pfSense implementations while maintaining reliable operation in various environments.

Key Features

Intel Core i5-5200U Processor (3M Cache, up to 2.70 GHz) - also supports i7-5500U
Intel HD Graphics 5500 for excellent display performance
1 x DDR3L RAM slot (Low voltage 1.35V) supporting 4GB, 8GB, or 16GB configurations
Dual storage support: mSATA and 2.5" SATA
mPCIe half-size slot for 300M WiFi module (optional)
Gigabit LAN for high-speed networking
Fanless cooling system for silent operation

Configuration Options

RAM Options	No RAM	2GB	4GB	8GB
Storage Options	No SSD	30GB SSD	60GB SSD	120GB SSD	250GB SSD	500GB SSD	1TB HDD

Note: Base configuration (no RAM/no SSD) does not include WiFi module.

Technical Specifications

General	Brand: HLY Type: Mini PC Processor: Intel Core i5-5200U (3M Cache, up to 2.70 GHz) Cores: 2 GPU: Intel HD Graphics 5500 RAM Slot: 1 x DDR3L (1.35V) Storage: Supports mSATA and 2.5" SSD/HDD WiFi: mPCIe half-size (optional)
Connectivity	LAN: RTL 8111EL 1000 BaseT Audio: High Definition Audio Controller WiFi: 802.11 b/g/n (dual antenna) OS Support: Windows 10/8/7, Linux Color: Black (custom colors available)
I/O Ports	4 x USB 3.0 1 x VGA 1 x HDMI 2 x LAN 1 x MIC/SPK 1 x Power Switch 2 x COM (RS232)
Power	Type: External Power Adapter Input: 12V, 5A
Environment	Operating Temp: -20°C to 80°C Storage Temp: 0°C to 80°C Humidity: 10%-90% (non-condensing)
Dimensions	180 x 128 x 55mm

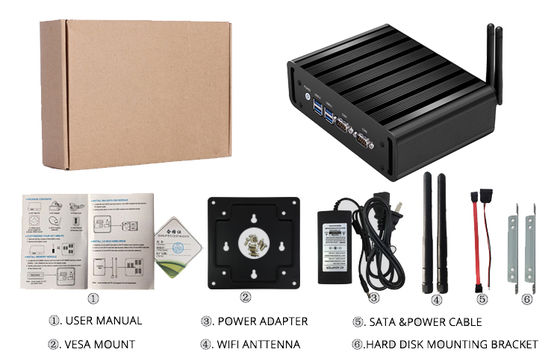

Package Contents

1 x Mini PC
1 x User manual
1 x VESA mount
1 x WiFi antenna (except barebone configuration)
1 x Power cable and SATA cable (where applicable)
1 x Hard disk mounting bracket (where applicable)

Product Images

Packaging & Shipping

Carton Dimensions	24x20x12cm	24x23x20cm	55x24x20cm	55x24x36cm
Quantity	1 unit	2 units	5 units	10 units
Weight	2.5kg	5kg	12.5kg	25kg

Shipping Methods

DHL	3-5 days delivery, high reliability, suitable for South America/Europe
FedEx	3-5 days delivery, good service, suitable for South America/Europe/Southeast Asia
Aramex	6-15 days delivery, ideal for Middle East destinations
Post	Economical option with slower delivery times
Custom	Other shipping methods available upon request

Power Adapter Options
